Four Generations of Field-Driven Innovation
At MODTAC, we believe in continuous improvement driven by real-world operational feedback. Our Suppressor Shield evolution represents over seven years of field testing, operator input, and engineering refinement. Each generation addressed specific challenges identified through military and law enforcement use.
Understanding your Shield's generation is important for parts compatibility, upgrade decisions, and maximizing performance. While previous generations continue to provide effective suppressor protection, current product accessories and replacement parts are optimized for our latest generation systems.
This reference will help you identify your Shield generation and understand the improvements that led to our current product lineup.
Clamp-On Foundation

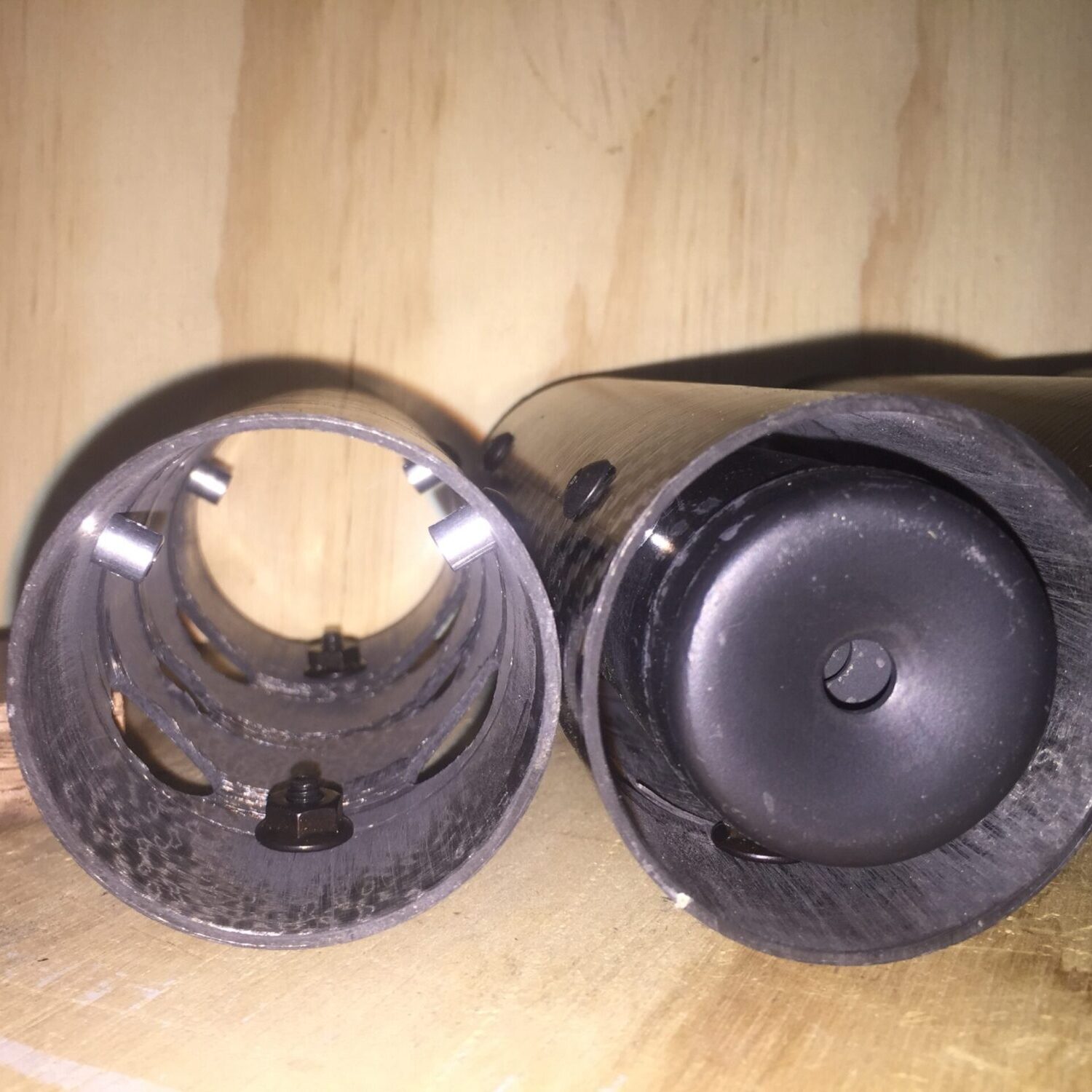

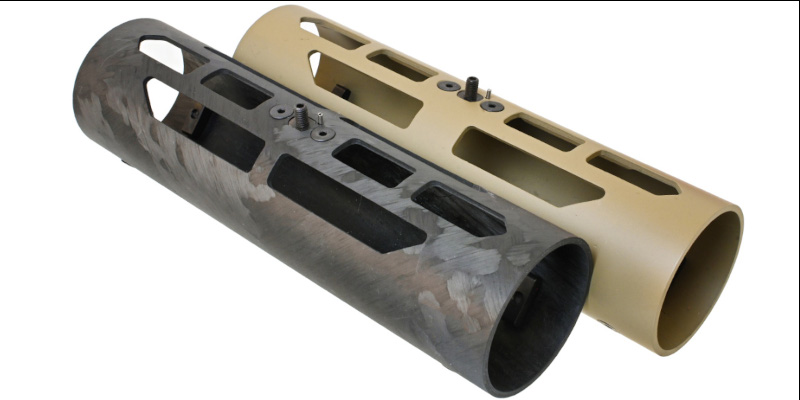

MODTAC entered the suppressor protection market with our first clamp-on Shield design. Suppressor cover options at the time were extremely limited. Suppressor wraps were not capable of handling heat requirements of SOF weapon system employment and had difficult and unreliable attaching methods (generally drawstrings or cables). The initial version of the Suppressor Shield wouldn't find it's way into the public's hands. It utilized off-the-shelf, roll-wrap carbon fiber construction and attached via triangulated screw clamping.

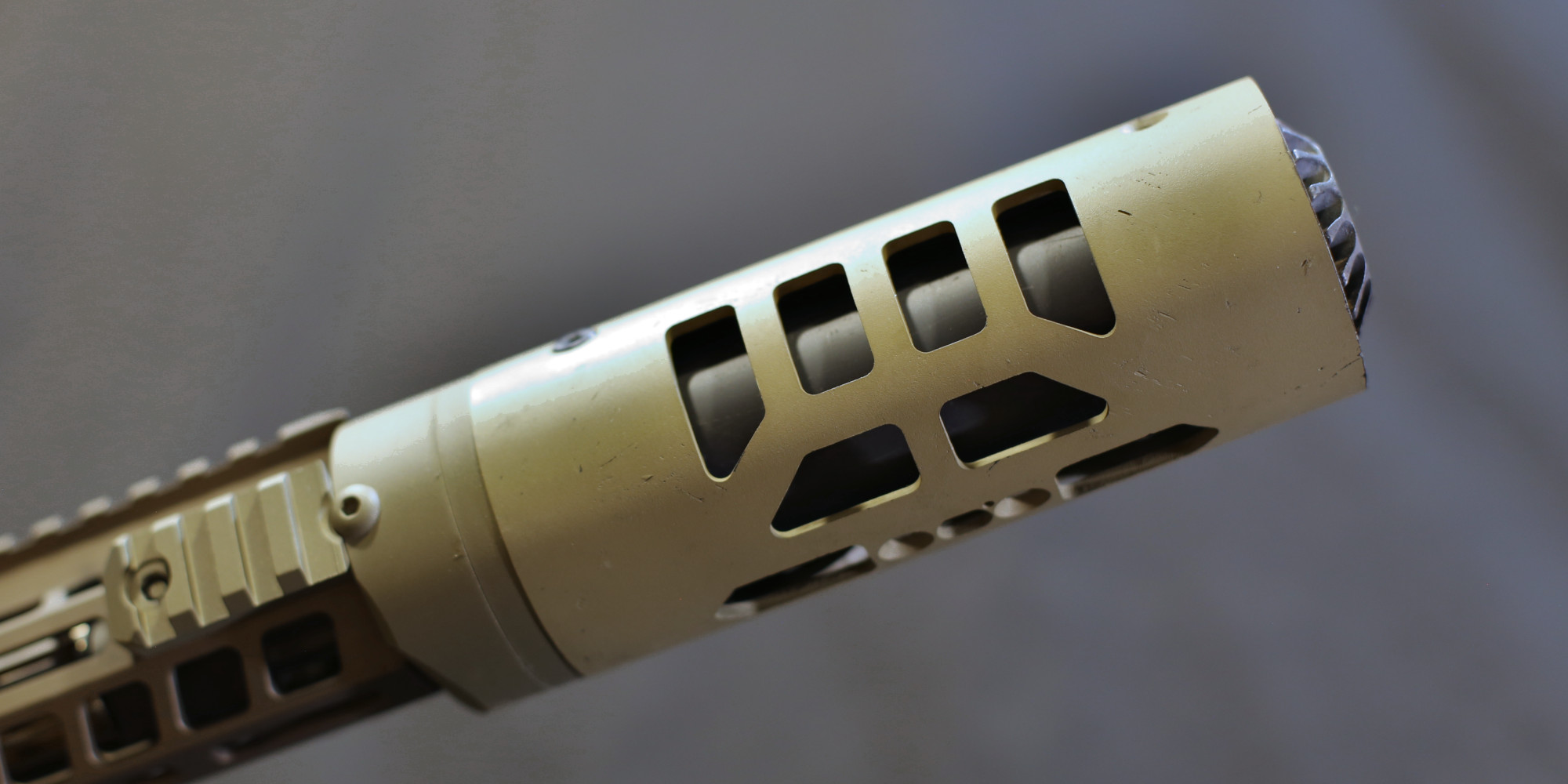

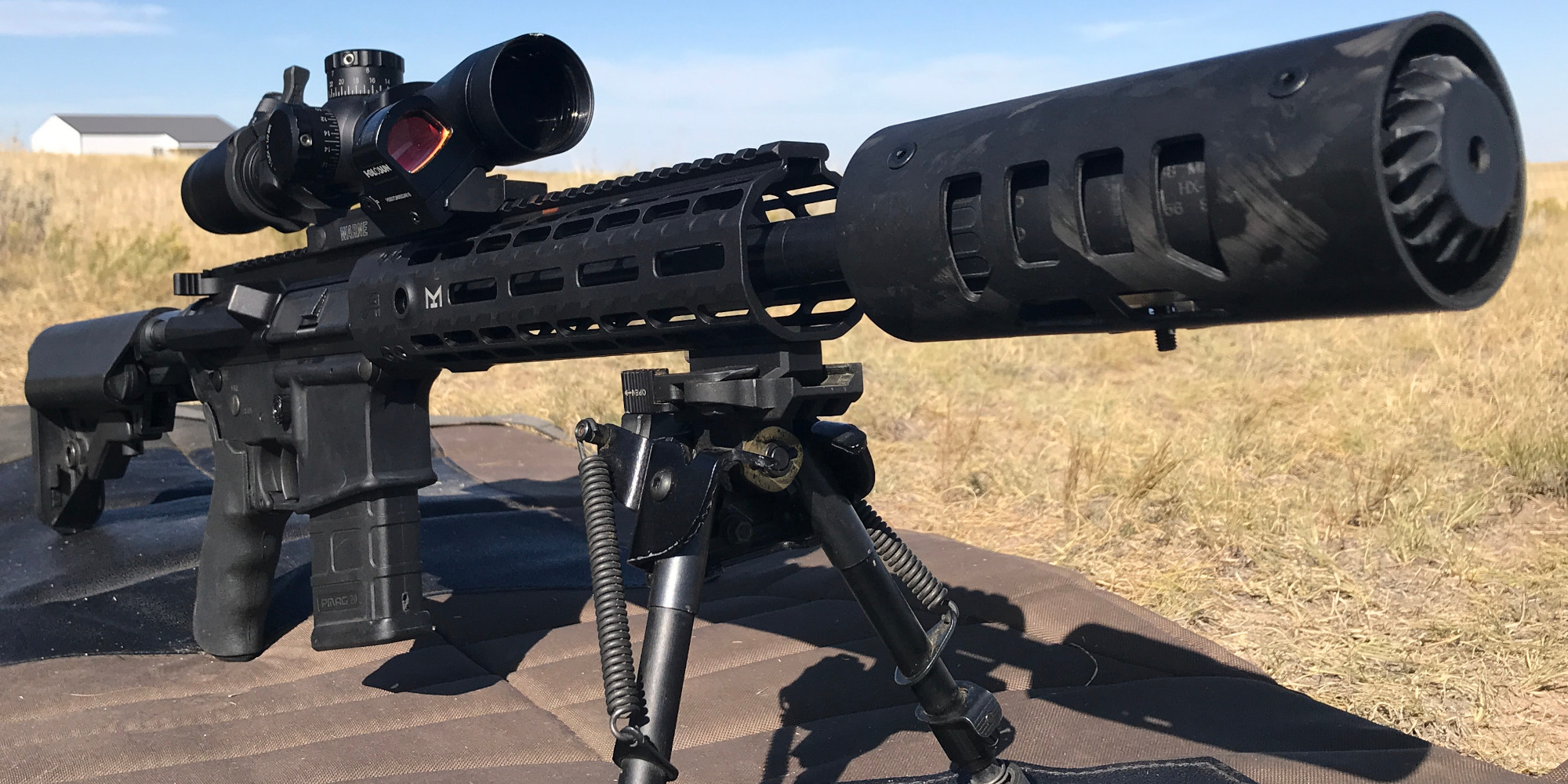

We upgraded to filament wound, high-temperature carbon fiber with a significantly improved clamping system. This represented a major step forward in materials and construction quality.
Despite clamping improvements, we observed consistent loosening and slippage of the Shield during use, particularly with higher caliber rounds. The clamp-on design had inherent limitations that required a fundamental approach change.
Free-Floating Innovation

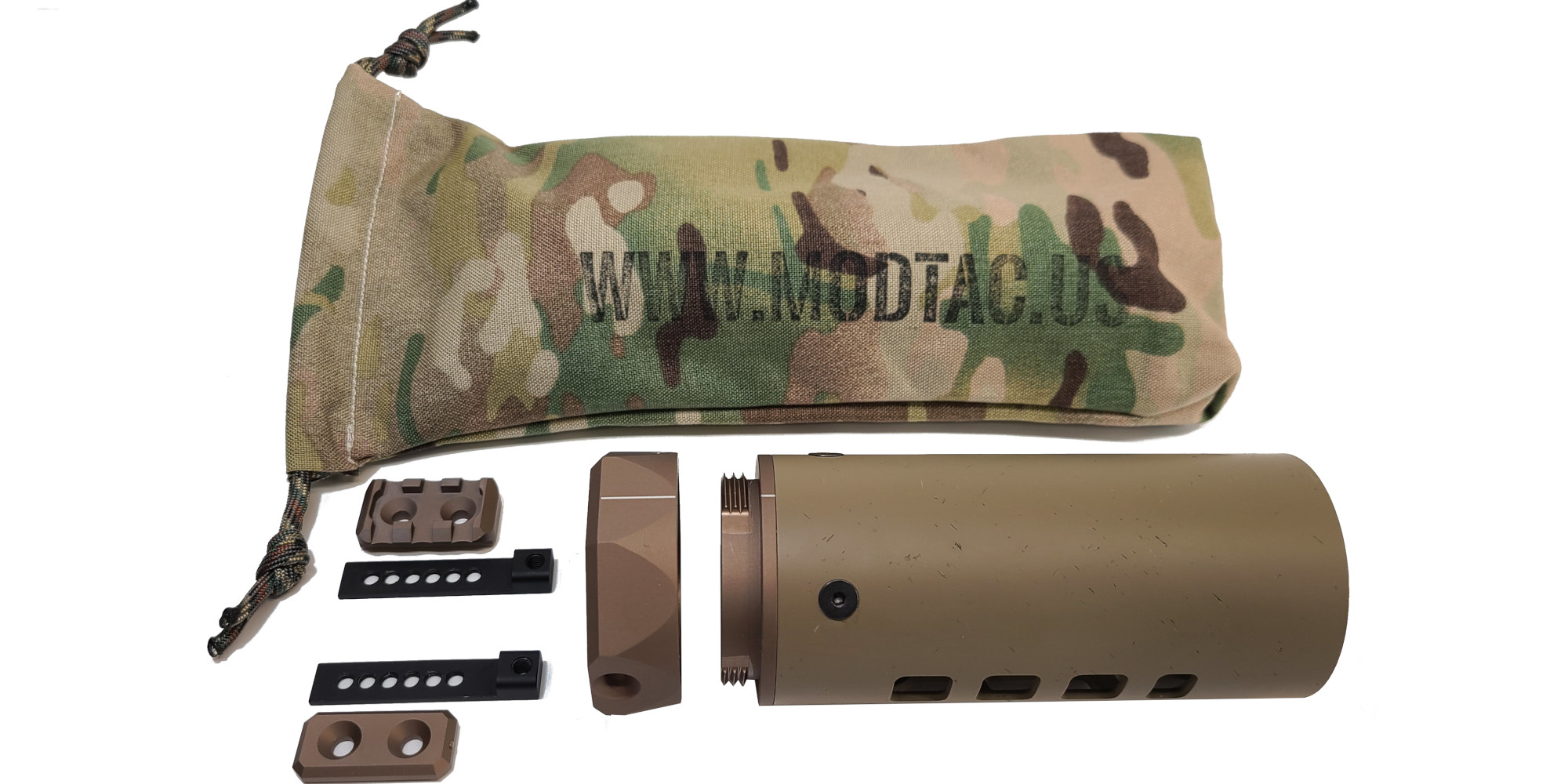

We developed the M-LOK® based Modular Rail Attach Coupler (M-RAC) system - a revolutionary approach that created the first free-floating, quick-disconnect suppressor cover available on the market. The M-RAC started as the Geissele Rail Attach Coupler(G-RAC) and the Knights Rail Attach Coupler(K-RAC) for US DoD and Law Enforcement operators.

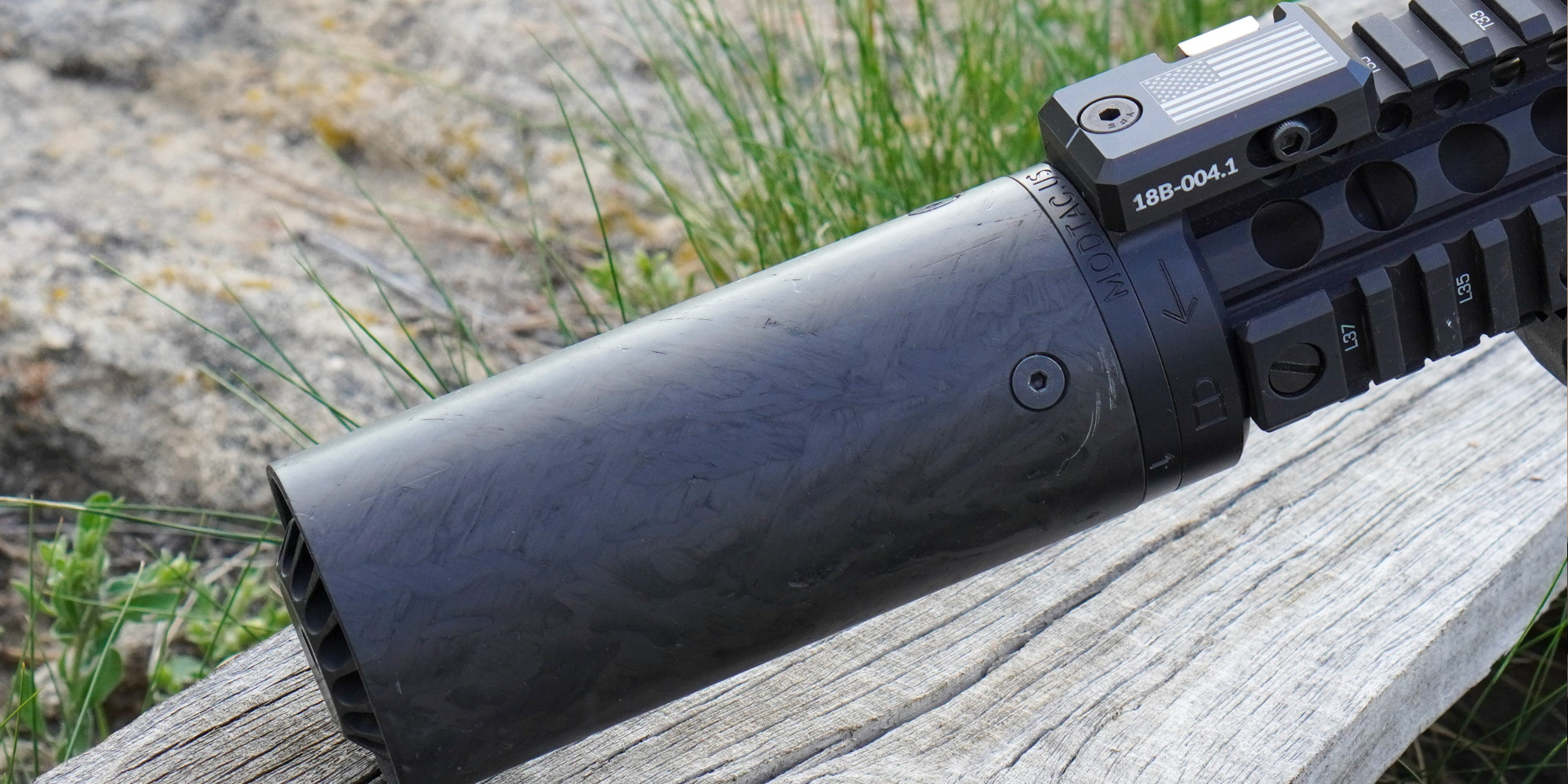

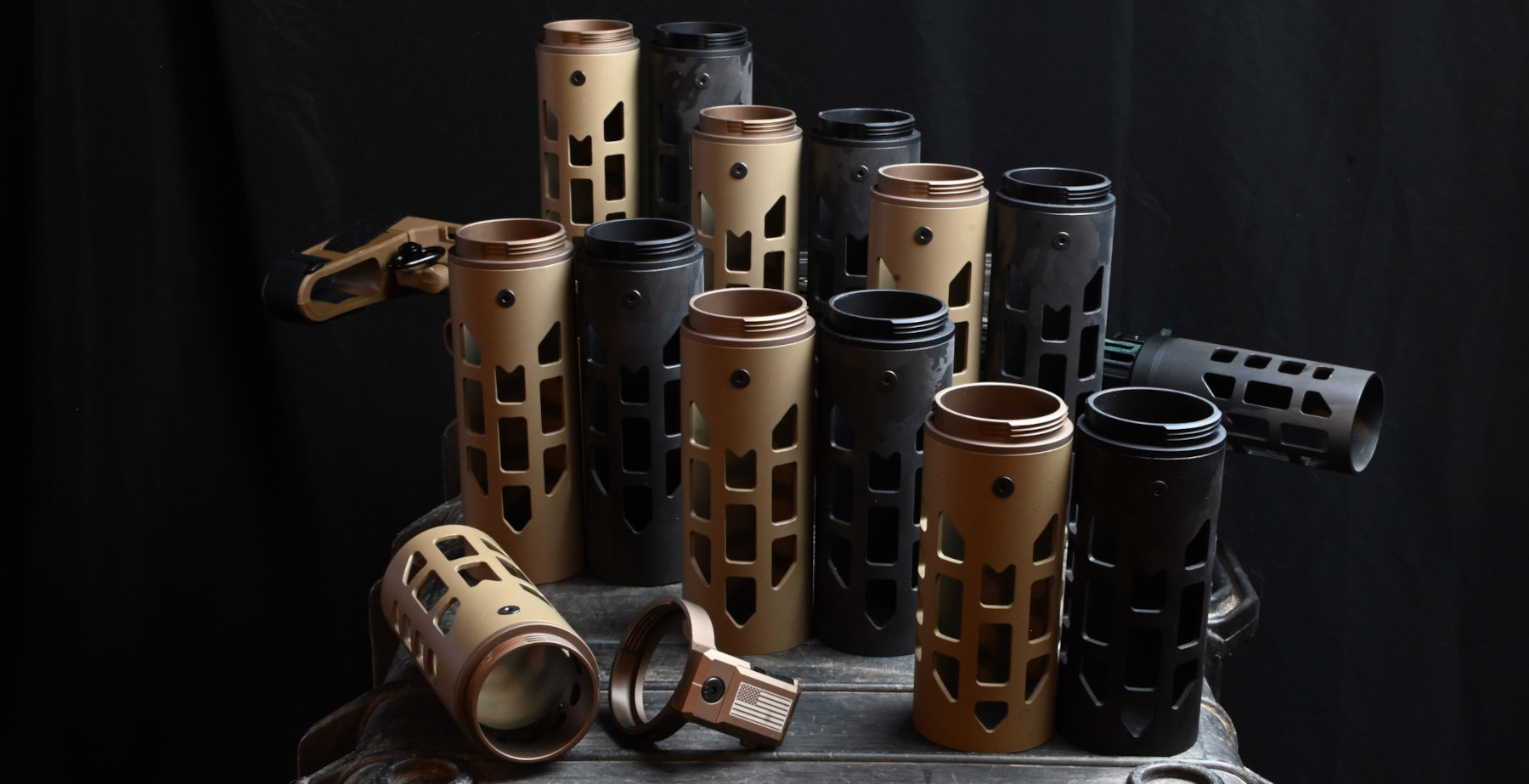

We introduced the U-RAC system, designed to mount to the top picatinny rail of any handguard. This provided cross-platform compatibility that the M-RAC's handguard-specific design couldn't match.

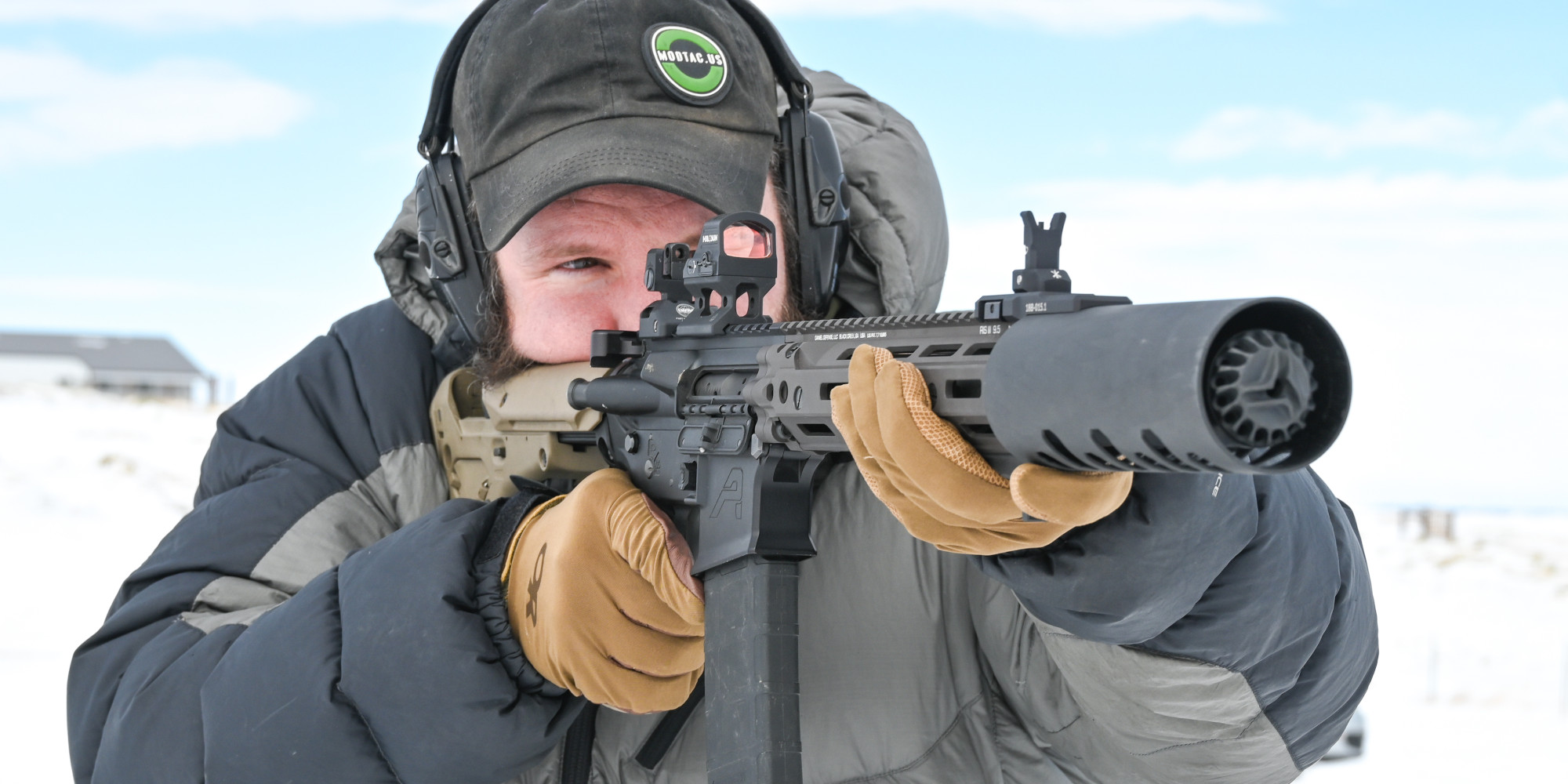

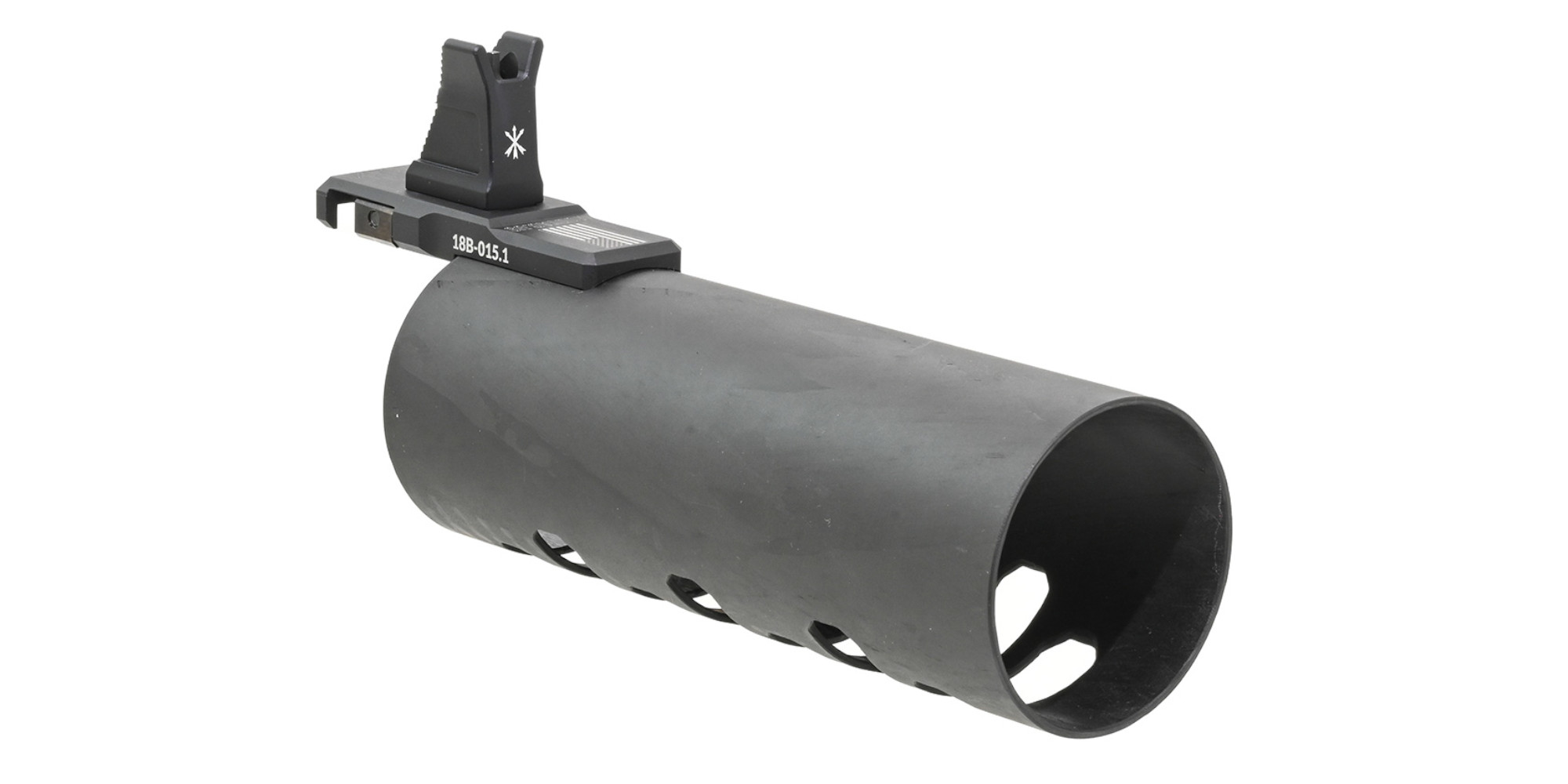

With the growing number of "fatter" diameter suppressors came the requirement for a cover that would fit. There was also an attempt to lower the price point of our Shields to broaden accessibility by making it a direct attach system with no quick detach couplers. Ultimately, once the U-RAC XL was released the RAS XL wouldn't be that great of an option comparitively.
Free-floating design: Eliminated direct contact with the suppressor, dramatically reducing heat transfer to the Shield itself.
Secure mounting: Direct attachment to rifle handguard via M-LOK slots at 3 and 9 o'clock positions or the top picatinny rail completely eliminated any opportunity to experience slippage issues or "shoot offs" like suppressor wraps.
Quick-disconnect: Interrupted thread coupler engagement allowed rapid Shield removal and installation offering ease of installation and removal of the suppressor while providing maximum, secure protection.
The M-RAC and U-RAC systems provided capabilities no other suppressor cover offered, establishing MODTAC as the innovation leader in suppressor protection technology.
Universal Compatibility + User Experience + In House Production
Field Challenge Identified: Interrupted thread coupler occasionally locked in position, making Shield removal difficult or impossible in field conditions.

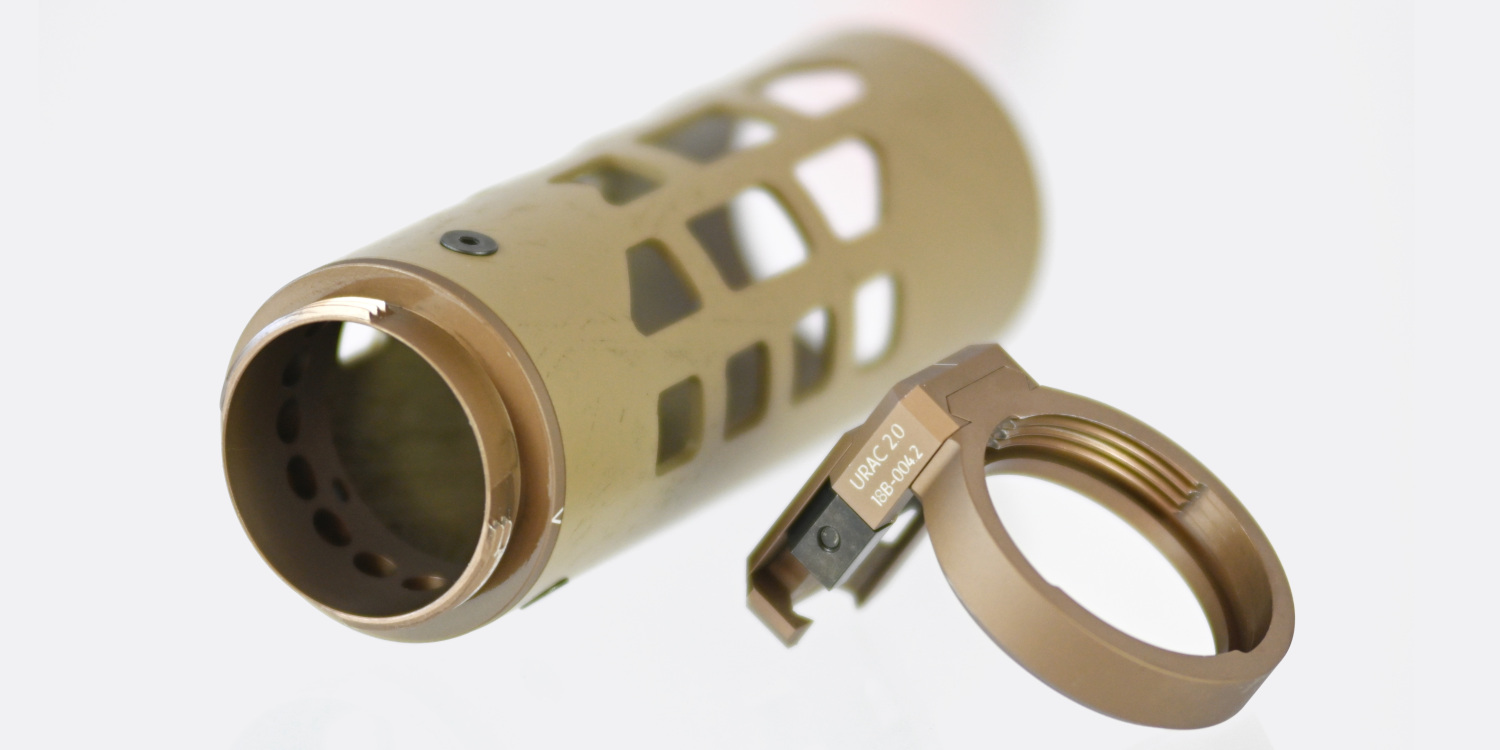

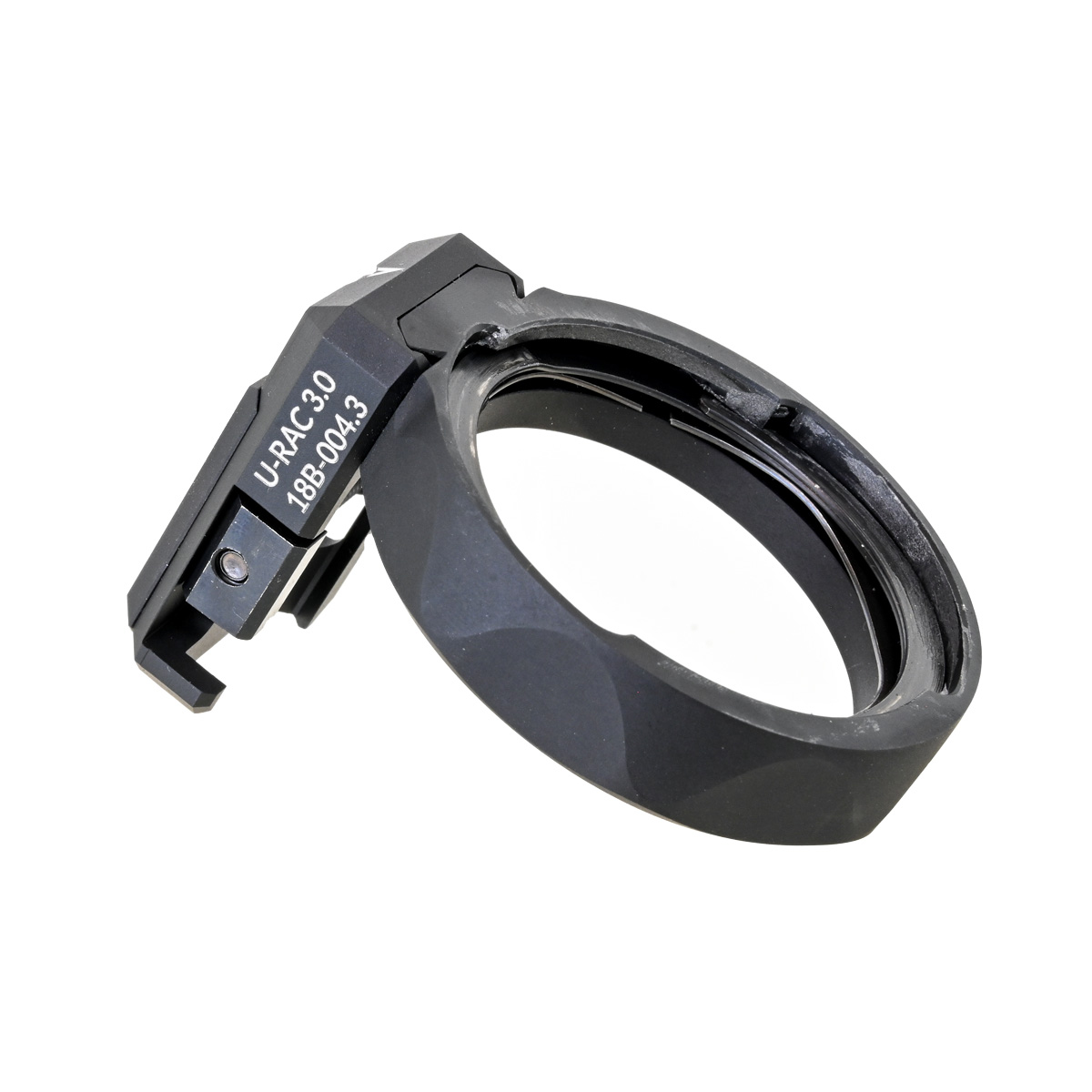

Engineering Solution: A completely re-designed Spring-loaded, dual lug quick attach/detach system provides consistent quarter-turn lock-up with positive retention and easy removal, eliminating the stuck-in-lock issues entirely.

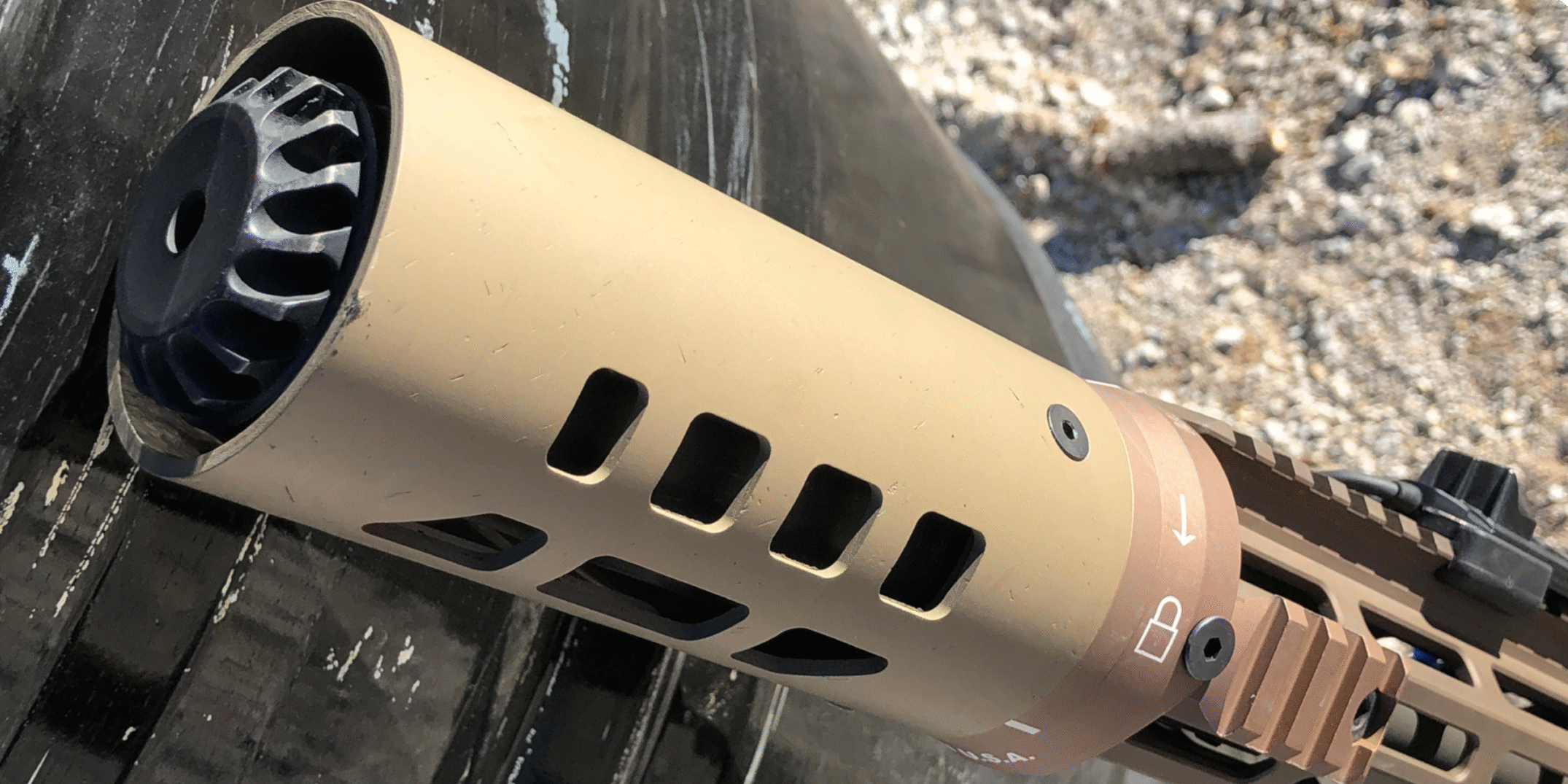

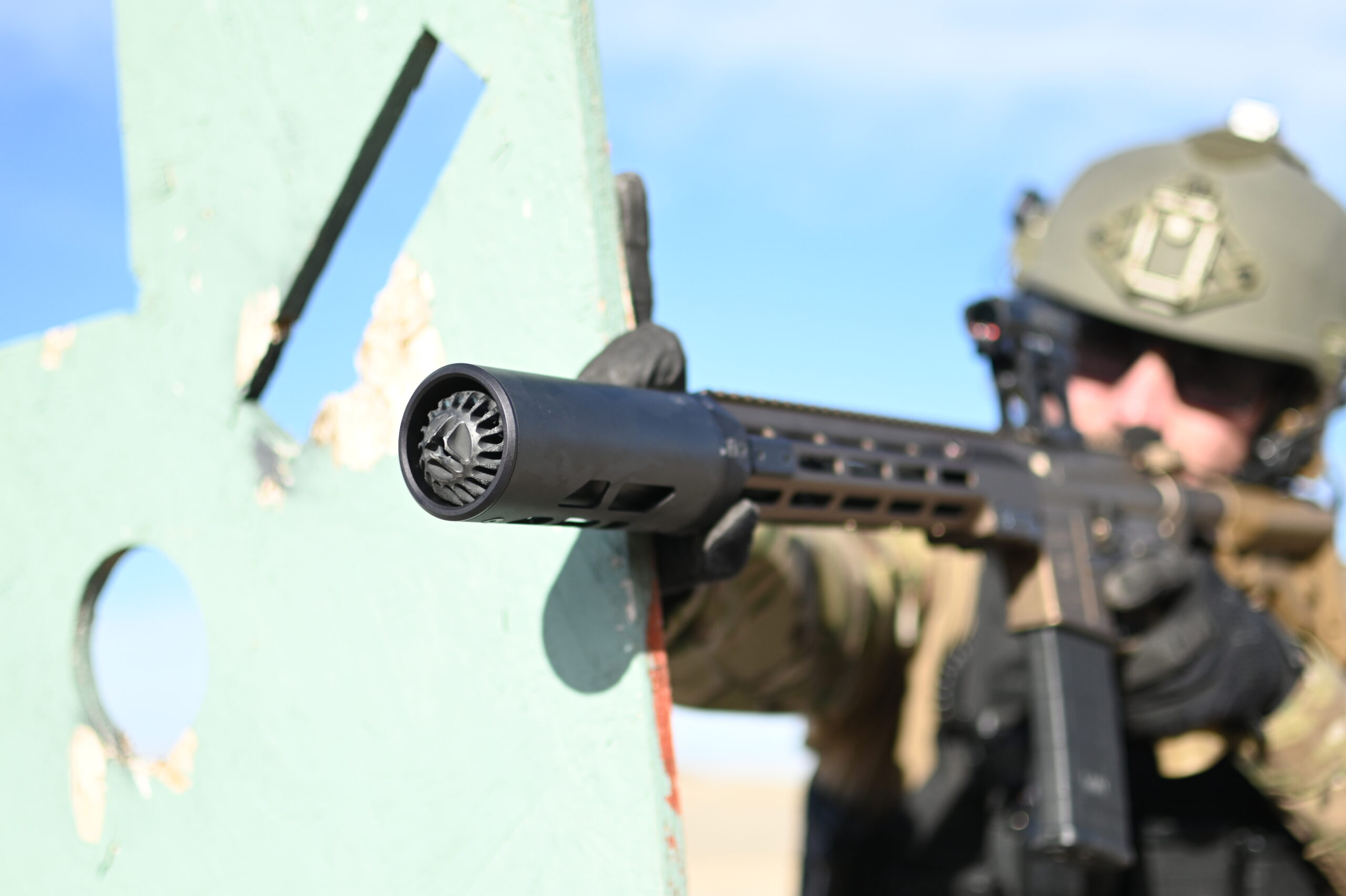

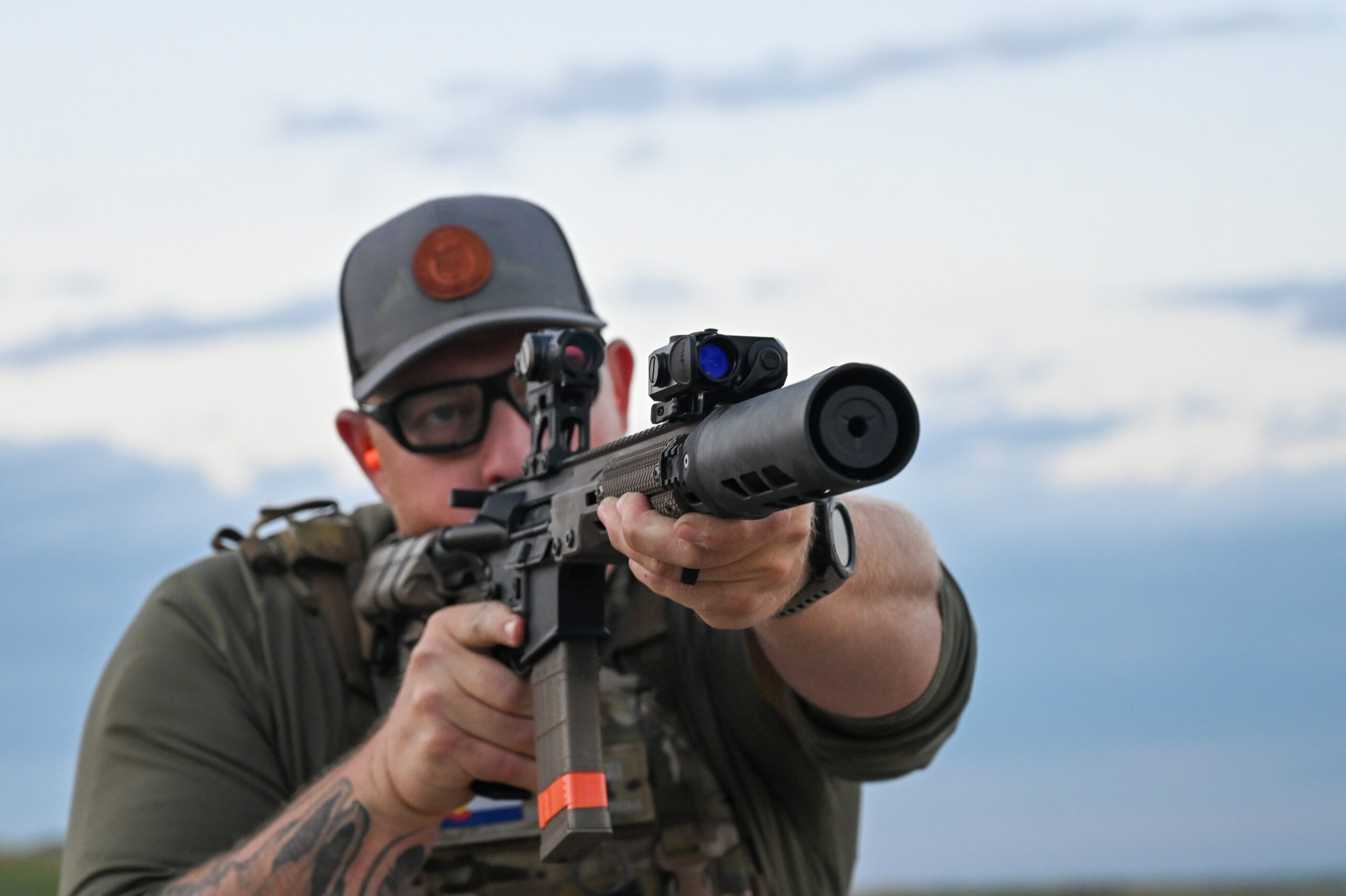

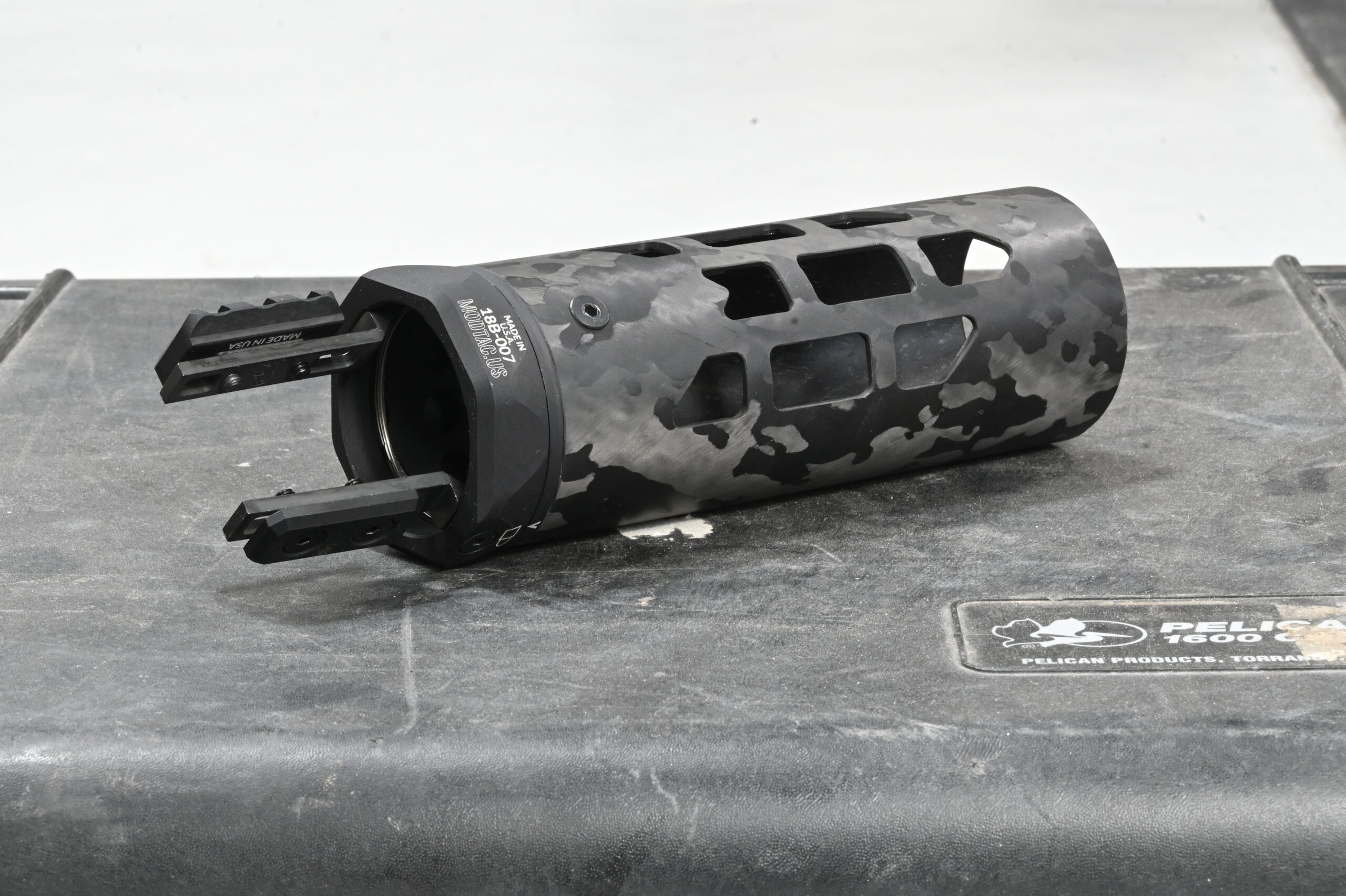

Significant improvements to the M-RAC system included moving the mounting points inside the handguard, offering choice between low-profile plate or picatinny mounting plate options. These changes reduced overall coupler size, system weight, and handguard obstruction.

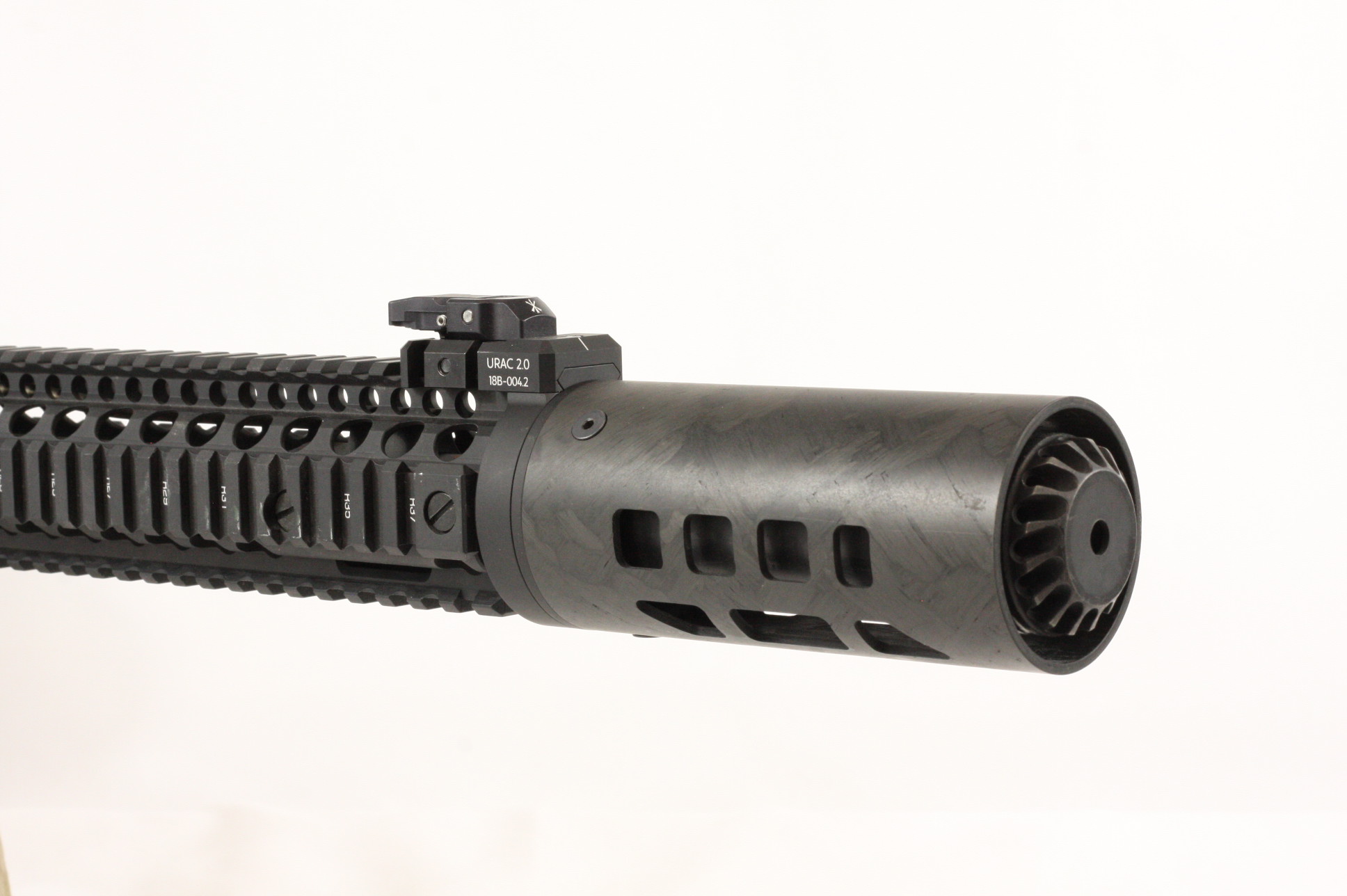

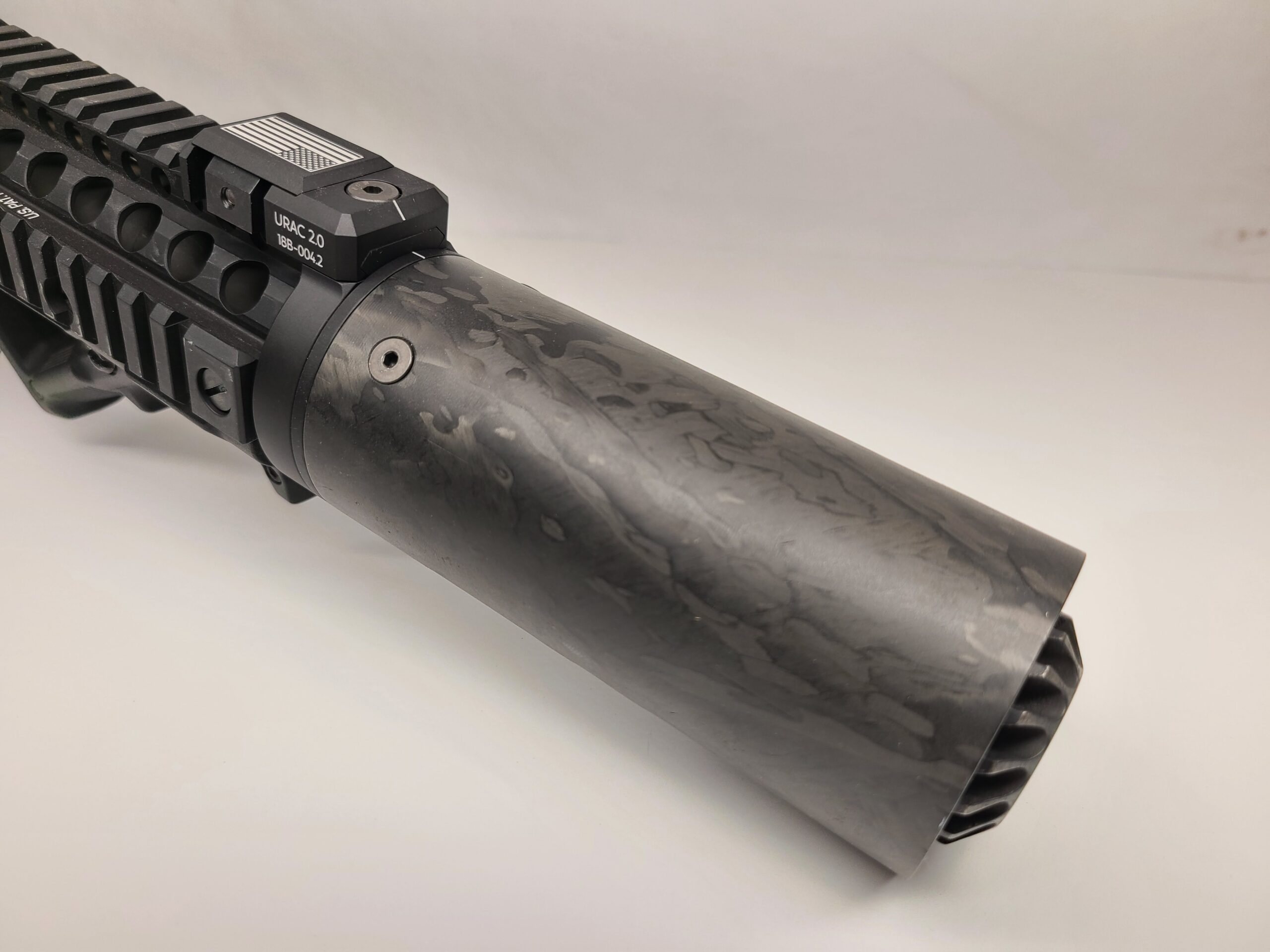

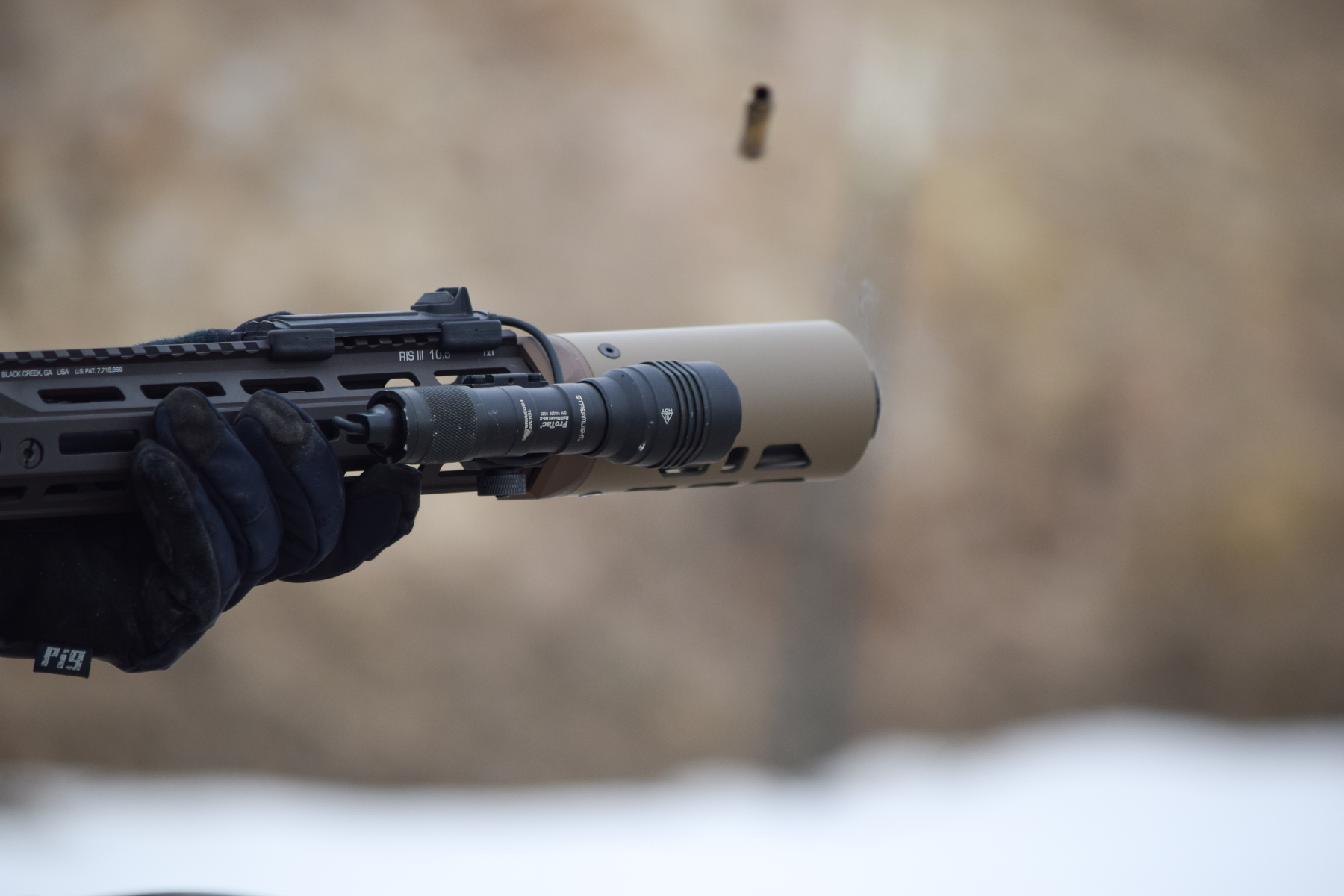

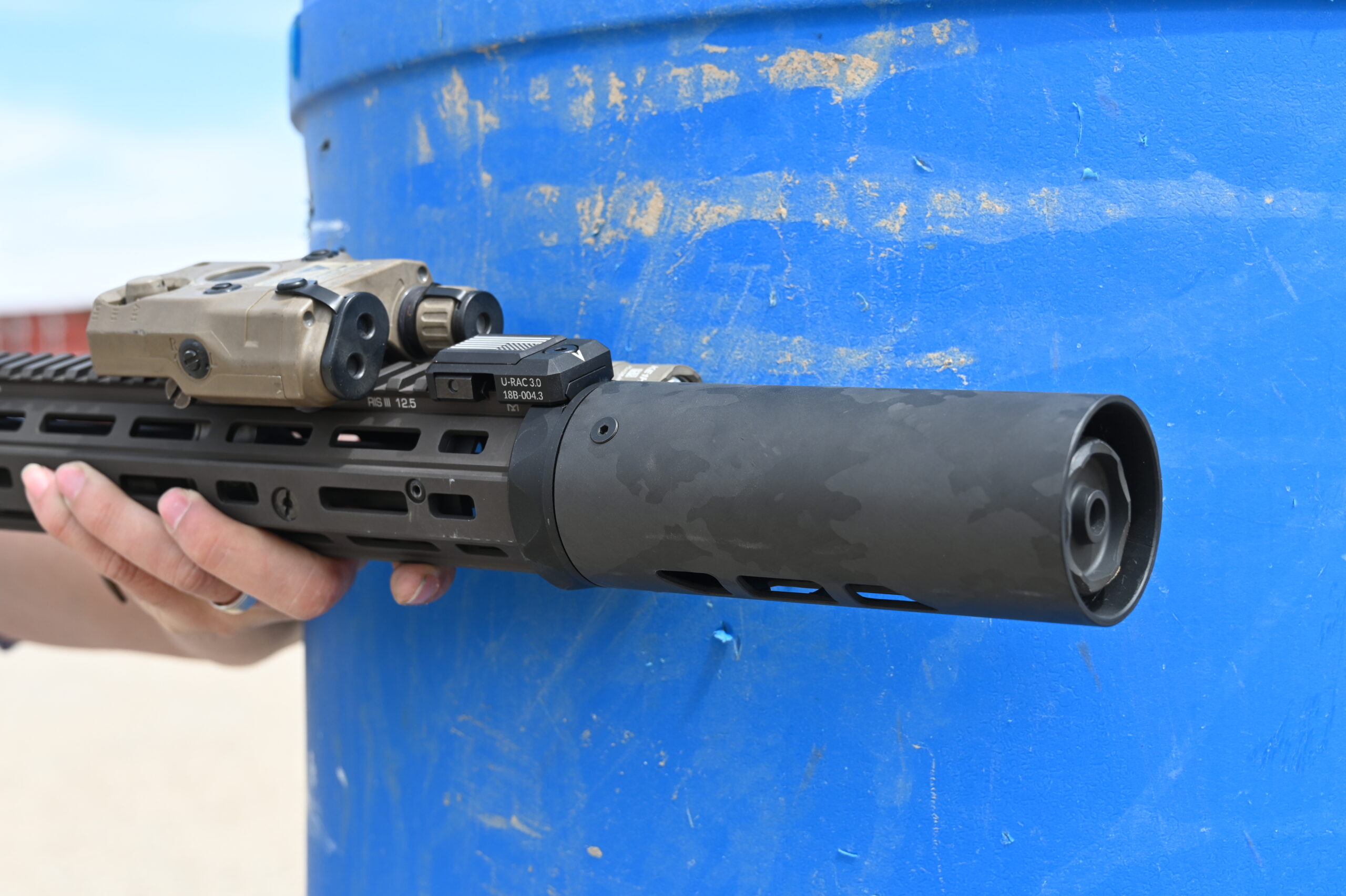

The U-RAC, now standardized for the addition of a Unity flip up front sight, included the same Coupler improvements that the M-RAC received. These changes reduced overall coupler size, system weight, and handguard obstruction.

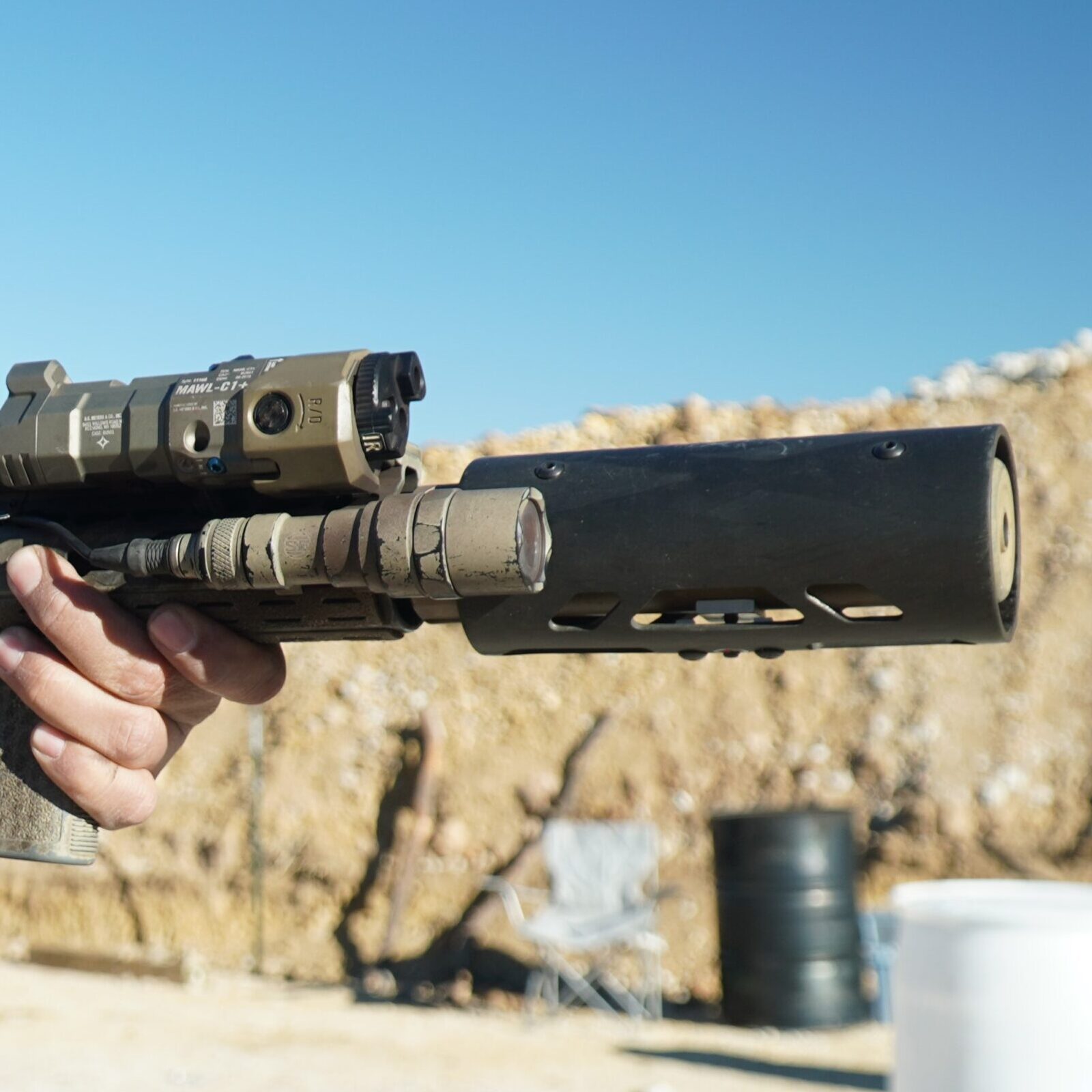

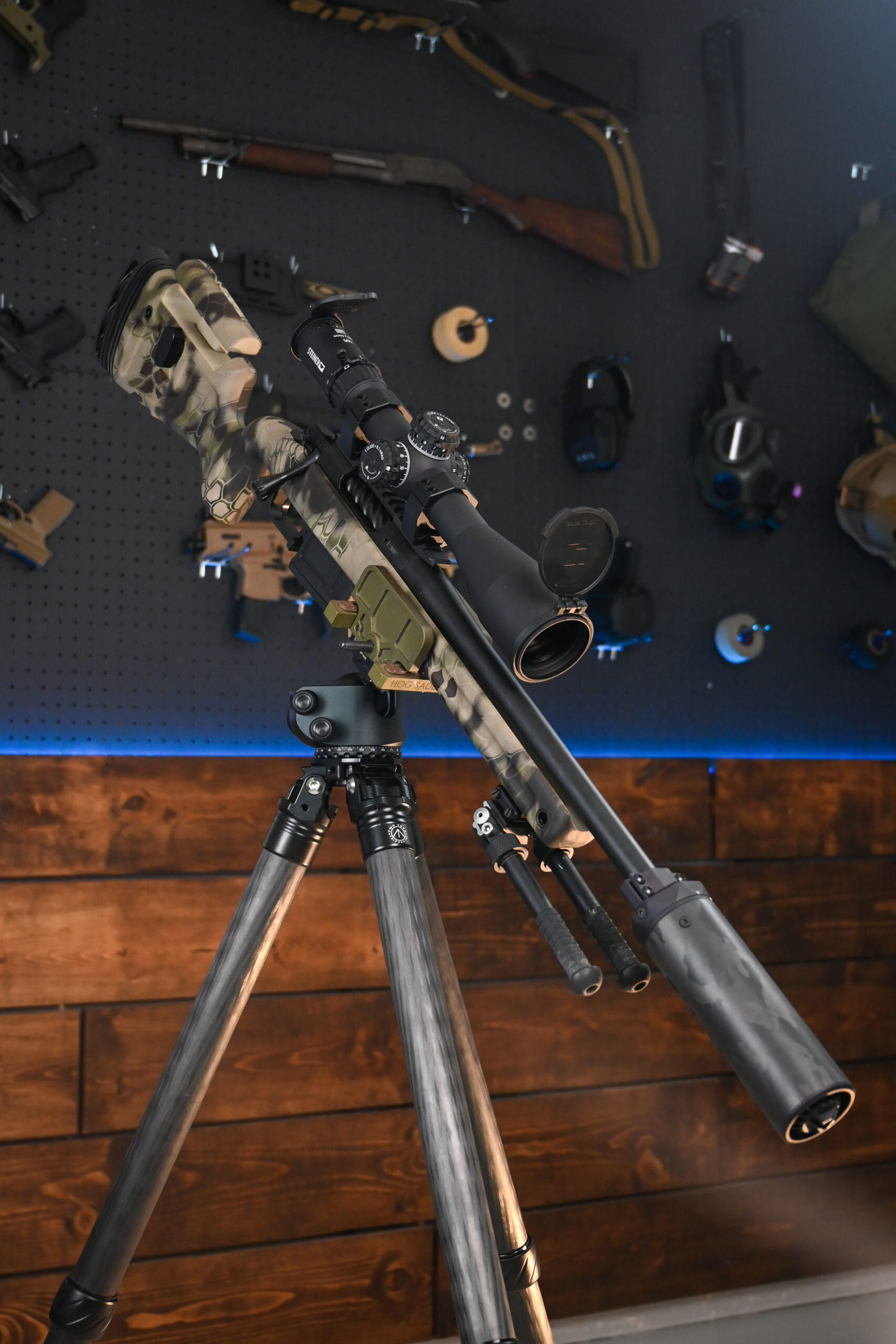

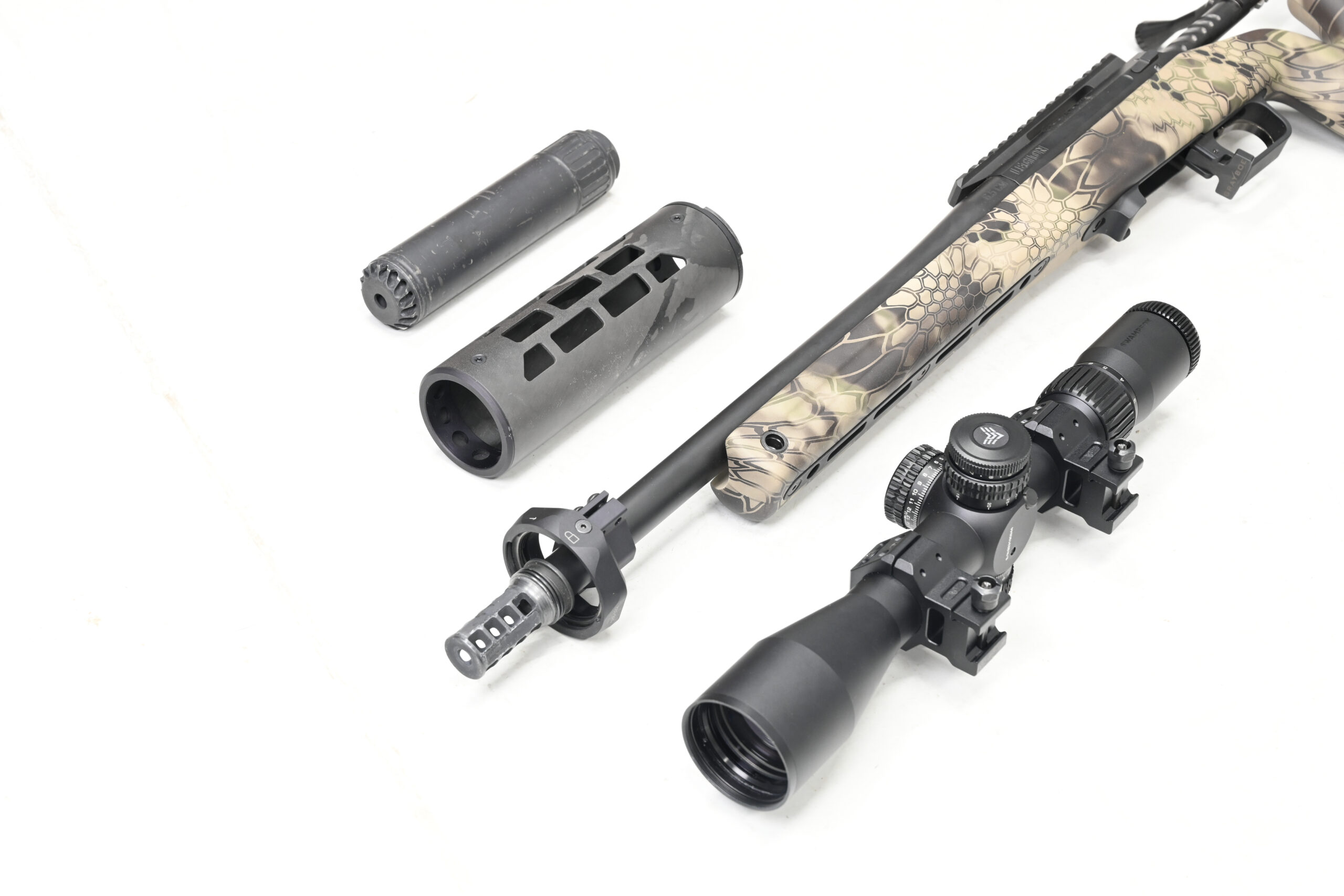

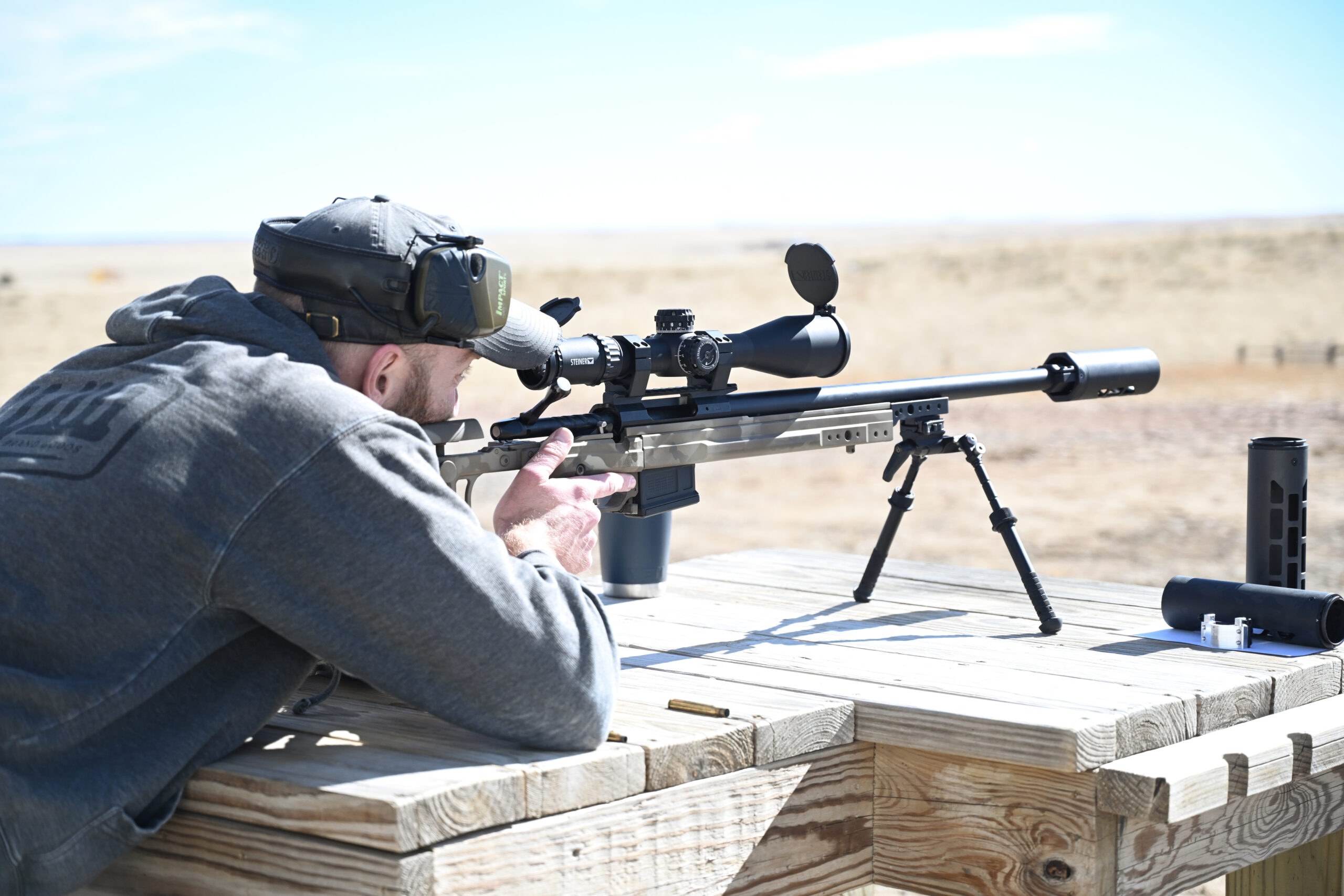

From the by gone days of the Direct Attach Shields, we couldn't help but try and find an effective, slip-resistant, free-floating thermal mitigation solution for weapon systems without rail attaching options. The PRSS was the solution and it's one of the most effective mirage mitigation tools on the market and you still get that same MODTAC protection against burns and destroyed equipment.

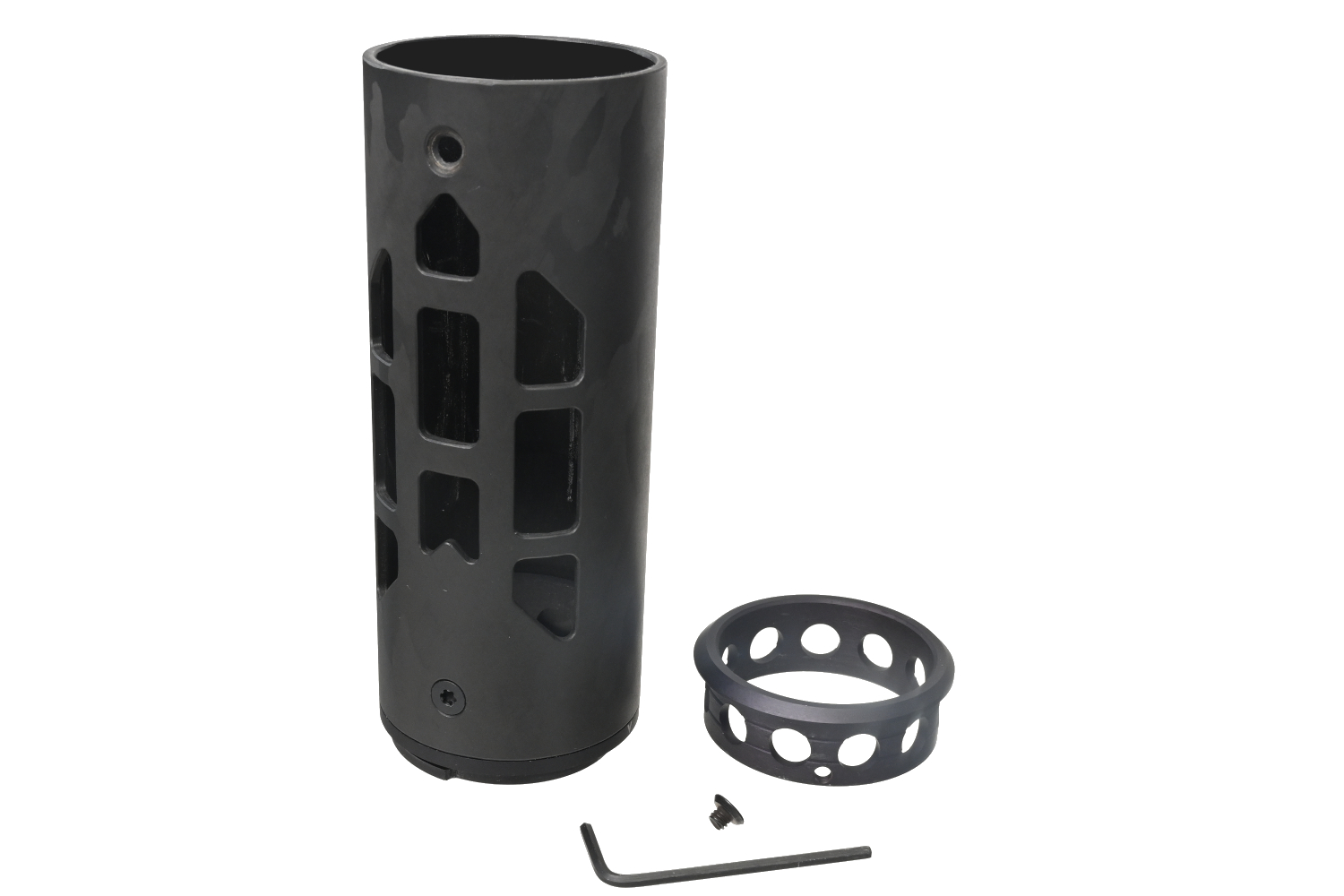

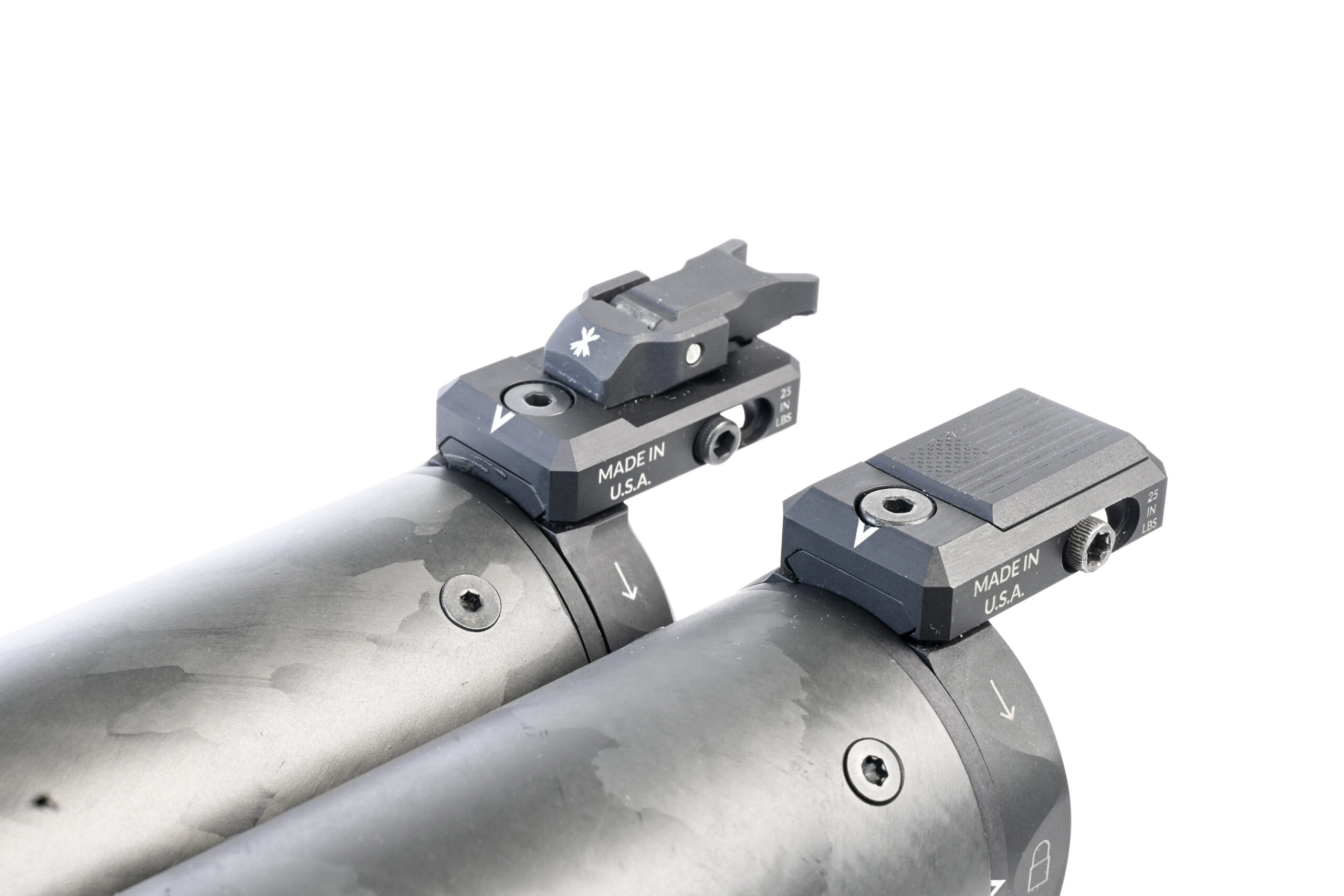

Based on field feedback identifying instances where the interrupted thread system could become stuck in the locked position, we redesigned the coupler mechanism. We integrated a mounting footprint for the Unity flip up front sight and an End Cap for increased drop protection.
Refined Performance Across All Product Lines
Generation 4 encompasses all our active product lines: M-RAC, U-RAC, PRSS, and MAX Series. Each incorporates the latest improvements specific to their mounting system and operational requirements.
U-RAC Improvements: New improved rail grabber design that integrates with upcoming accessory mounts. Field feedback indicated the previous U-RAC rail grabber could occasionally become misaligned, so we developed a more secure mounting mechanism.
M-RAC M-LOK Integration: Our mounting tabs received an intergenerational improvement, changing screw spacing to match M-LOK standard specifications. This allows any M-LOK accessory to be directly attached to our tabs, preventing end users from "losing" valuable rail space.
Dual Bolt System: Generation 4 M-RAC and PRSS systems feature dual bolt tab attachment. Field feedback revealed that when systems heat up and material expansion occurs, single-bolt mounting could allow the Shield to "droop" or "sag." Our dual bolt approach eliminates this issue.
PRSS System: Utilizes the proven dual bolt attachment method for maximum stability.
MAX Series: Our first-generation MAX and MG MAX Shields incorporate all proven features from U-RAC, M-RAC, or PRSS systems depending on the specific attachment method required.
